Product Description

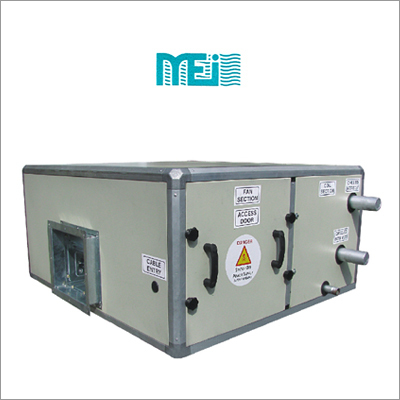

Ceiling Suspending Unit
DESCRIPTION AND FEATURES
FRAME WORK: Extruded Aluminium Hollow Profile
PANNELS : Power coated/ Prepainted Heavy gauge Galvanised Steel Sheet
FAN : DIDW Centrifugal Forward Curved, Statically & Dynamically balanced
FILTER : 25mm Thick, Dry or washable type
COIL : Copper/ 1/2"/27G/4R/6R
DRAIN PAN: Heavy gauge Galvanised/ Stainless Steel, Duly insulated
INSULATION:PUF
DATA DESIGNED AT 35MM STATIC PRESSURE, FILTER & COIL AREA CONSIDERED AT 500FPM
STANDARD AHU CONSISTS OF FOLLOWING SECTIONS
- FAN SECTION
- COIL SECTION
- FILTER SECTION
DIMENTIONAL DETAIL
|
| MODEL | | MEI-10-CS
| MEI-20-CS
| MEI-25-CS
| MEI-30-CS
| MEI-40 CS
| MEI-50-CS
| MEI-60-CS
| MEI-80-CS
|
| CFM | | 1000
| 2000
| 2500
| 3000
| 4000
| 5000
| 6000
| 8000
|
| CMH | | 1700
| 3400
| 4250
| 5100
| 6800
| 8500
| 10200
| 13600
|
FAN DIA(MM)
| | 7"x17"
| 10"x10"
| 12"x12"
| 15"x11"
| 15"x15"
| 12"x12" S2
| 15"x11"S2
| 15"x15"S2
|
| RPM | | 1717
| 1080
| 963
| 779
| 815
| 1001
| 810
| 848
|
| VELOCITY(M/S) | | 8
| 9.87
| 8.76
| 9.4
| 9.93
| 8.76
| 9.4
| 9.93
|
MOTOR(K/W)
| | 0.55
| 1.1
| 1.1
| 1.1
| 1.5
| 2.2
| 2.2
| 3
|
AHU DIMENSIONS(MM)
| W
| 1150
| 1300
| 1450
| 1550
| 1625
| 2250
| 2475
| 2750
|
| | H | 500
| 625
| 675
| 775
| 775
| 800
| 750
| 850
|
| | L | 875
| 1000
| 1025
| 1125
| 1125
| 1075
| 1175
| 1175
|
FILTER AREA(sq.ft)
| | 3.55
| 4.44
| 6.25
| 6.9
| 9.72
| 10
| 14.24
| 16.67
|
COIL FACE AREA(sq. ft)
| | 2
| 4
| 5
| 6
| 8
| 10
| 12
| 16
|
APPOX. WT. W/O IL, MOTOR & FILTER
| KG
| 1NO
| 1NO | 1NO | 1NO | 1NO | 2NO | 2NO | 2NO |
